Keywords

Transglutaminase; Texture; Microstructure; Stretchability; Oiling off

Introduction

Mozzarella cheese has unique functionalities in melted state as meltability, free oil formation, stretchability and browning [1]. These functionalities are governed by various factors such as milk composition, added additives, processing steps and storage conditions [2-4]. For proper mozzarella characteristics, a balance should exist between salt and Ca++ as well as the presence of proper cheese pH [4,5]. Mozzarella microstructure is formed of protein fibers with channels filled with cheese serum containing fat globules which allow more serum to exist particularly when fibers are closely packed. So, if fat is reduced as in low fat mozzarella, it becomes difficult to maintain the same water-toprotein ratio in the cheese and fat no longer acts as blocking agent. Therefore, the presence of proper percent of water is important, since it acts as lubricant or plasticizer between protein molecules.

The popularity of pizza widened Mozzarella cheese market. However, large consumption of pizza with regular fat Mozzarella caused the consumer concern about the consumption of high fat product. This led scientists to investigate the possibility of production of low fat Mozzarella. But low fat Mozzarella has inferior organoleptic and physical properties. Cheese with less than 10% fat usually has hard, rubbery and translucent with poor flavor development and poor meltability and performance when cooked on pizzas [5-7]. Number of measures were tried to overcome the problem either by modifying processing procedure or by adding certain additives such as whey proteins or fat replacer.

Currently, transglutaminase (TG) is the only commercial covalent cross linking enzyme available for improving dairy products. Cross-linking reactions may lead to a modification of functional properties of proteins such as solubility, emulsifying capacity, foaming and gelation properties. For example, in Quarg cheese, TG resulted in lower firmness, less grainy and creamier cheese [6,8]. In low fat ice-cream, TG produced superior physical and organoleptic properties [9]. In spite of that the use of TG in processing mozzarella cheese would improve the properties of full fat and helps in ameliorating low fat cheese physical problems, the enzyme hampers the coagulation process as TG cross links casein micelles molecules. Besides, the enzyme blocks the first stage of the coagulation by reducing the accessibility of rennet to break K-casein through its covalent bridges. This challenges the scientists to find a way to overcome that problem [6]. Number of workers has tackled the above problem. Some added the rennet into cold milk followed by the enzyme [10]. Others added the rennet for 5 min followed by the enzyme [11]. Ya-nan et al. [12] added the enzyme 7 min after rennet addition in processing low fat cheddar cheese. Ozer et al. [13] added the enzyme and rennet simultaneously at 30°C. This research was carried out to adopt a method for using TG in making low and high fat mozzarella cheese.

Materials and Methods

Materials

Fresh raw cow milk was obtained from Dairy Science and Technology Department, Faculty of Agriculture, Cairo University, Giza, Egypt. Milk chemical composition used for high fat cheese was 11.54%, 3.0%, 3.38%, 2.68% and 0.22% for total solids, fat, protein, casein and NPN, respectively. Titratable acidity (%) and casein/fat ratio (C/F) were 0.17% and 0.88, respectively. Low fat cheese was made from milk with a composition of 9.96%, 1.3%, 3.42%, 2.67% and 0.22% for total solids, fat, protein, casein and NPN, respectively. Milk titratable acidity (%) was 0.16% and C/F ratio was 20.05. Streptococcus thermophilus, Lactobacillus dilbruckii subsp. bulgaricus and calf rennet powder were obtained from Hansen's laboratory (Denmark). Transglutaminase was a gift from Ajinomoto Europe Sales Gmbh, Hambury. The powder preparation contains a 100 units/g. Dry coarse commercial sodium chloride was obtained from El-Nasr Co., Alexandria, Egypt.

Selecting a method for milk coagulation with rennet in the presence of TG

Seven trials with two different mixing orders of the two enzymes (TG and rennet) were tried (Table 1) [14]. The first order was the addition of rennet into milk at 5°C and after 30 min TG was added and the mixture was kept either for 2 (T₂) or 4 (T₃) hours before raising the temperature to 40°C for coagulation. In the second order of mixing rennet and TG were added together to milk at 5°C. The mixture was kept at 5°C for different periods of 2, 4 and 5 hours for trials (T₄), (T₅), respectively before raising the temperate to 40°C. In trial (7) TG enzyme was added at 5°C for different periods from 2 to 5 hours, then rennet was added and the mix was left for 30 min before raising the temperature to 40°C.

Table 1 Mixing trials of milk with rennet & TG and coagulation conditions.

Mozzarella cheese making with TG using the selected method

Mozzarella cheese was manufactured according to the method of Kindstedt [15]. Fresh cow milk with 1.3 or 3% fat was standardized to the proper c/f ratio for low and regular fat cheese (Table 1) and pasteurized at 72°C for 15 s. Two percent starter was added to milk at 37°C and was left for 30 min for ripening. At pH of 6.45, milk was cooled down to 5°C, 0.04% rennet was added and was left for 30 min. The enzyme TG (0.02 or 0.05%) was mixed in and the mixture was kept for 2 h at the 5°C then the temperature was raised to 40oC for coagulation. The proper coagulum was cut by the two knives and curd particles were scalded at 42°C. Whey drainage was at pH 6.1 and cheddaring was carried out up to pH 5.9 followed by milling. Curd stretching was carried out in water at 70°C. Cheese brining was carried out in 10% brine solution at 5°C. Cheese was stored at 5°C for 28 days and sampled every week for analysis.

Chemicals analysis

Cheese moisture, titratable acidity, salt were determined according to AOAC [16]. Fat content was determined according to Ling [17]. Total nitrogen (TN), soluble nitrogen (SN), casein (CN) and non-protein nitrogen (NPN) were determined by semimicrokjeldahl method of SMEDP [18].

Functional properties

Meltability of cheese was measured using the meltability test according to Olson and Price [19] with the modification of Rayan et al. [20]. Stretchability was measured using an iron bar test as reported by Davis [21]. Free oil formation was estimated by modified Gerber test as described by Kindstedt and Fox [22]. Fat leakage was evaluated as described by Bertola et al. [23].

Viscosity measurements

Milk viscosity measurements on renneting were carried out in triplicates using a Brookfield viscometer (Model Dn-11+ Brookfield Engineering Lab., USA) according to Metwally and El-Zeini [24].

Texture properties

Texture parameters of coagulum were evaluated using texture analyzer (CNS Farnell, Borehamwoad, Hertfordshimer, England), as described by Ahmed et al. [25]. Cheese cubes of 10.0 + 0.1 mm were submitted to two successive compressions to 50% of their initial height using flat-headed plunger (20 mm diameter) at a constant rate 0.5 mm/s. Samples were allowed to equilibrate at ambient temperature approximately 30-45 min prior to testing. Texture characteristics such as hardness, cohesiveness, springiness, Adhesiveness, Modulus of elasticity, gumminess and chewiness were calculated. Average of four measurements was reported.

Cheese microstructure

Cheese cubes were prepared according to Lobato-Calleros et al. [26]. Samples were examined at 5 KV through Scanning Electron Microscope (JEOL-jsm 5200) equipped with an IBM-compatible computer to record the images.

Milk components recovery and yield calculations

The actual percentage of fat and protein recovered in cheese or lost in whey and stretching water were calculated as percentage of that in milk. Theoretical yield was calculated with the modified Van Slyke formula as described by Metzger et al. [27].

Yield (kg of cheese/100 kg of milk)=[(0.58×milk fat%)+(milk casein%-0.1)×1.13]/1-(cheese moisture/100).

Yield efficiency=(Actual yield/theoretical yield)×100.

Organoleptic properties

The cheese samples were organoleptically evaluated, by dairy Dept. staff members, according to the method of Scott [28]. Score points for flavor, body, textures and appearance were 50, 35, and 15, respectively.

Statistical analysis

Experiments were conducted in triplicate as a completely randomized design. Statistical analysis, ANOVA, was performed using MSTAT-C (ver2.10, Michigan state university, USA) package on a personal computer. Individual comparisons, contrast or LSD between treatments and correlations were also performed. Significance was declared at P < 0.05.

Results and Discussion

The use of TG in rennet coagulation of milk

Seven experimental trials (Table 1) were carried out using the fact that rennet and TG enzymes work at cold temperature (5°C) but without casein coagulation. Coagulation process was monitored by viscosity measurements. Figure 1 illustrates viscosity changes profile by time during milk coagulation with rennet. Normal milk coagulation started with a moderate increase in viscosity then suffered a slight dip after which viscosity increased sharply to its peak at complete coagulation. Finally viscosity dropped due to coagulum deformation by shearing. The slight dip in viscosity encountered at the beginning of coagulation could be due to the decrease in size of the micelles by the removal of the hairy macropeptide of K-casein by rennet. O’Sullivan et al. [29] reported that TG through the covalent cross linking bridges blocks the primary coagulation step probably by reducing the accessibility of К-casein to rennet.

Figure 1: The effect of mixing methods of rennet & TG with milk on viscosity during coagulation process. T1=Milk+rennet at 5°C/30 min, T2=Milk+rennet at 5°C/30 min+TG at 5°C/2 hours, T3=Milk+rennet at 5°C/30 min+TG at 5°C/4 hours, T4=Milk+rennet+TG simultaneously at 5°C/2 hours, T5=Milk+rennet+TG simultaneously at 5°C/4 hours, T6=Milk+rennet+TG simultaneously at 5°C/5 hours.

Mixing order of both enzymes affected the process and period of coagulation as well as the properties of the resulted gel. If TG was added to milk at 5°C prior to rennet addition, no coagulation will take place (T₇, not shown). This could be as a result of casein polymerization with TG, a matter which prevented the accessibility of K-casein for rennet reaction and conferred some stability against casein precipitation with ca++. Milk coagulation occurred when rennet worked on casein either before TG addition or when both enzymes were added together to work simultaneously for a proper period of time.

Figure 1 shows that coagulation period was minimum (35 min) for (T₂) in which rennet worked first for 30 min before the addition of TG. This was followed by (T₄) at 49 min which both enzymes were added simultaneously and incubated for 2 hr. On the other hand, T₃, T₅ and T₆ took longer coagulation periods (58, 64 and 63.4 min, respectively).

These results indicated that, whether rennet works before TG (T₃) or both worked simultaneously (T₄ and T₅) there was a certain limit for the extent of TG reaction, which was not more than 2 h, otherwise coagulation is delayed or inhibited and forming abnormal viscosity curves. There was a positive correlation (0.973) between TG reaction period and coagulation period. This delayed coagulation was due to excessive TG linking of peptides [29]. The changes in texture of the six coagulums showed statistical significant (P<0.001) differences in the texture parameters due to the reaction of TG and the mixing order of both enzymes. Penetration test showed that gel of T₂ was higher in hardiness, adhesiveness, consistency, cohesiveness and gumminess than that of control and of T₃ and T₄ treatments. The values of the above parameters for T₂ were 26.16, 6.5, 24, 20 and 50 and 18, 6, 17.5, 18 and 31 for the control, respectively. The differences in hardness and consistency between T₂ and other gels particularly of T₃ and the control were significant (P<0.05). The differences between T₃ and T₄ were insignificant (P<0.05). Bond strength of T₂-gel was significantly higher than other trials; therefore mixing method of T₂ was used for manufacturing mozzarella cheese. These results were in accordance with those of Han et al. [30].

Mozzarella cheese processing

Two experimental, high and low fat Mozzarella cheeses were processed from cow milk using two levels of TG (0.02 and 0.05 %, wt/wt), following the coagulation conditions of T2 treatment (Table 1). The mean cheese composition changes as a function of TG and cold storage are shown in Table 2.

Table 2 Chemical composition changes during cold storage and functional properties of Mozzarella cheese made with transglutaminase enzyme.

Means with unlike superscript letters were significantly different (α=0.05)

The enzyme treated cheese contained higher fat, moisture and TN and lower SN/TN and NPN/TN than their corresponding controls. The effect was enzyme concentration dependent. In low fat cheese, the increase in moisture and fat/DM was significant (P<0.001) only at the 0.05% TG level but in high fat cheese the increase was significant at both TG levels. The increase in TN by TG was significant at both enzyme levels in low fat, but was significant only at the 0.05% T.G in high fat cheese (P<0.001).

The decreasing effect on SN/TN and NPN/TN by the enzyme was significant at the enzyme both levels and in both cheeses. The enzyme did not affect cheese pH or acidity. In full fat cheese, the moisture, fat and TN increased from 52.16, 40.76 and 3.37 in the control into 52.74, 41.12 and 3.42% in the 0.02% TG and 53.13, 41.32 and 3.48% in the 0.05% TG, respectively.

In low fat cheese, moisture, fat and TN increased from 54.48, 21.16 and 3.88% in the control into 54.71, 21.46 and 3.96% in the 0.02% TG cheese and 55.10, 21.90 and 3.99% in the 0.05% TG cheese, respectively.

During the 28 days of cold storage, cheese moisture decreased while acidity, TN, SN/TN and NPN/TN increased. On the other hand, Fat/DM of low fat cheese increased in the control and TG cheeses, and the increase was significant at the 0.05% TG (P<0.001).

In the high fat cheese, Fat/DM decreased in the control as well as in TG cheeses, but still TG cheese had higher fat than the control, and the difference was significant at the 0.05% TG level. Soluble and NPN/TN, increased on storage with the control more than TG-cheeses.

The enzyme, through cross-linking casein micelles, formed strong gel which retained more moisture, fat and protein and reduced the formation of fine curd particles which usually produces from weak curd. Moreover, the enzyme linked some small peptides with the micelles and retained others within curd pockets; this reduces the soluble and non-protein nitrogen as shown in Table 2.

Protein and fat loss in whey stretch water and cheese yield

Table 3 presents the effect of TG on cheese yield and milk components recovery. The enzyme increased cheese yield and reduced protein and fat lost in whey and stretch water. In high fat cheese the yield increased from 12% to 12.9% and 13.60% on using the 0.02 and 0.05% TG, respectively. In low fat cheese, the yield increased from 9.90% to 10.70% and 11.40% on using the 0.02 and 0.05% TG, respectively.

Table 3 The effect of TG on cheese yield and protein & fat loss in whey stretch water.

Means with unlike superscript letters were significantly different (α=0.05)

Retaining more milk components in the cheese as well as the reduction in protein & fat loss in whey and stretch water resulted in higher cheese yield (Table 3). The increase in cheese yield was enzyme concentration dependent. In high fat cheese, the increase in yield was significant (P<0.001) only at the 0.05% TG level, but in low fat cheese both enzyme levels led to significant yield increase.

Cheese organoleptic evaluation

Organoleptically, both TG cheeses were improved than their corresponding controls. In the high fat cheese, the use of 0.02% TG level was preferred by the panelists scoring (93/100) while cheese with 0.05% TG was too soft and scored (89/100). On the other hand, low fat cheese with 0.05% TG was preferred than 0.02% TG cheese, their scores were (85/100) and (83/100), respectively.

Cheese functional properties

The functional characteristics of mozzarella cheese treated with TG and their change during cold storage are reported in Table 4. In low and high fat cheese, the enzyme improved cheese stretchability, meltability, oiling off and fat leakage and the degree of improvement was enzyme concentration dependent. The increase in stretchability and meltability was significant (P<0.001) at both TG concentration. On the other hand, the decrease in oiling off and fat leakage was significant only at the 0.05 TG level.

Table 4 Functional properties of Mozzarella cheese made with transglutaminase enzyme.

Means with unlike superscript letters were significantly different (α=0.05)

The improvement in the above parameters continued through cold storage, and the degree of significance between treatments was preserved through the 28 days of cold storage. In high fat cheese, stretchability increased from 160 in the control into 200 and 220 cm in 0.02 and 0.05% TG cheese, cheese meltability improved from 55 in the control into 48 and 73 mm in the 0.02 and 0.05% TG cheese, respectively.

The enzyme reduced the oiling off and fat leakage from 4.25 and 57 in the control into 4.22% and 51 mm in the 0.05% TG cheese, respectively. During cold storage all the above parameters increased but their improvement was preserved.

In low fat cheese, stretchability increased from 100 cm in the control cheese to 140 and 160 cm, meltability increased from 30 mm in the control into 45 and 50 mm in the 0.02 and 0.05% TG cheeses, respectively. Oiling off decreased from 1.72% in the control cheese to 1.65 and 1.63% and fat leakage from 38 mm in the control to 36 and 35 mm in the 0.02 and 0.05% TG cheeses, receptively. The differences were significant only with the 0.05% TG cheese.

Cheese texture

Low fat cheese showed higher hardness, gumminess, modulus, adhesiveness, chewiness and springiness than high fat cheese (Figure 2). The use of TG enzyme increased the values of the above parameters and the increase was inversely proportional to TG concentration, in low and high fat cheese. However, cohesiveness and springiness were positively correlated in high and low fat cheese with TG concentration (Figure 2).

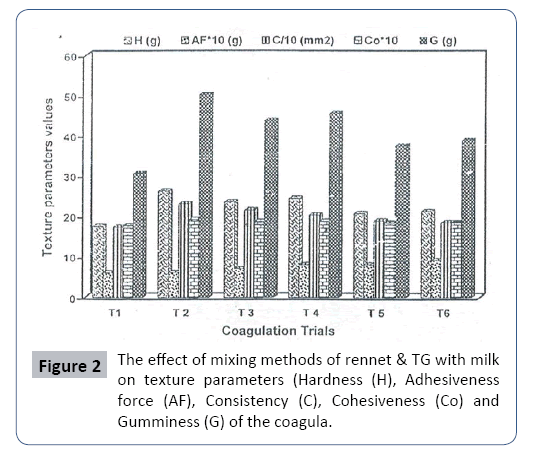

Figure 2: The effect of mixing methods of rennet & TG with milk on texture parameters (Hardness (H), Adhesiveness force (AF), Consistency (C), Cohesiveness (Co) and Gumminess (G) of the coagula.

The enzyme caused texture modification through recovery of more whey, whey protein and fat within the curd and was kept by the formation of large number of bonds.

The interaction between the enzyme concentration and the texture resulted in good and acceptable texture and body with 0.02% TG in full fat cheese and the 0.05% in low fat cheese and this was clear in the microstructure observation and organoleptic properties.

Cheese microstructure

High fat: In the control, protein exhibited oriented fibrous structure forming linear fibers, serum channels existed between fibers containing fat globules. In the 0.02% TG, protein intercrossing formed closer net causing fat globules to surface the fibers giving smoother structure and richer structure.

Low fat: Control cheese had a continuous protein matrix with the strands having no particular orientation intercepted with serum pockets. In the 0.02% TG, cheese protein matrix intercrossed with no particular direction but with more compact fibrous. In the 0.05% TG, more oriented and more compact fibrous with more elongated holes of serum with the appearance of fat globules (Figure 3). This effect increased with 0.05% TG causing fibers to intersect in a circular form giving a more compact structure with the appearance of fat globules giving even softer body.

Figure 3: High (left) and low (right) fat Mozzarella cheese micrographs: (a) control, (b) 0.02 TG and (c) 0.05% TG.

Conclusion

The devised methods for using TG in rennet coagulated cheeses proved to be working. The first method was followed up for processing low and high fat Mozzarella cheese. TG enzyme cannot be added before rennet nor should the working time of the enzyme be longer than 2 h. High fat Mozzarella cheese hardness, melting and stretchability properties were improved by using the enzyme. TG level of 0.02% gave the best results organoleptically as well as the other physical properties. Actually, the enzyme accentuates the effect of fat in cheese and increases the retention of more moisture. Both components helped cheese meltability and stretchability. The use of TG in making low fat Mozzarella modified cheese physical properties in a direction that ameliorate the bad effect of low fat. The enzyme at 0.05% concentration increased significantly cheese yield, moisture and the recovery of fat and whey proteins. The enzyme improved low fat Mozzarella meltability stretchability, oiling off and fat leakage. Organoleptically, treated cheese was more acceptable and the structure parameters were more satisfactory than the control. There results pointed out that when TG is used in dairy products, the proper concentration should be selected according to properties required.
