Talc represents one of the most useful mineral fillers which are compatible with the polypropylene (PP). It is characterized with its lamellar structure. The introduction of 30% by weight of talc, three types differing with the particle size d50 and the composition, has not only a positive influence on stiffness and crystallinity but also it decreases the impact strength and tenacity. The abrasive wear behavior depends mainly on the particle size of talc. Microscopic observations revealed that the talc layers are aligned along the injection flow direction, and uniformly dispersed in the PP matrix.
Keywords
Polypropylene; Talc filler; Compound; Mechanical reinforcement; Wear resistance
Introduction
Polypropylene (PP) is one of the most extensively produced polymers, especially widely used as automotive parts due to its good impact resistance as well as processability [1]. The addition of fillers into PP matrix has been an accepted route to achieve enhancement in material properties or/and cost saving possibilities. Talc, a plate-like layered structure magnesium silicate mineral, in which the octahedral brucite layer is sandwiched between two tetrahedral silica sheets, has proved to be particularly efficient filler on the mechanical properties and macromolecular orientation of compounds [2-6] and consequently an increase of the performance of reinforced polymeric matrix. At low concentrations (less than 3 weight%), talc acts as a nucleating agent, reducing spherulite size and shortening processing time [7]. At higher loadings (10-40 weight%) it acts as a reinforcing filler, increasing tensile modulus and stiffness, but reducing strain-to break and impact strength [8]. However, it has been highlighted that the filler nature of talc influences its reinforcement ability, depending on the surface activity, particle size, surface area, and surface functional groups [9-10].
This study concerns the effect of the addition of mineral filler (30% of talc) in polypropylene matrix on the morphological and mechanical properties. Three types of compounds PP/Talc (with 30% by weight of talc), differing by composition and average particle size, were used in this investigation. The crystallization and melting behaviour of PP and compounds was studied by differential scanning calorimetry (DSC) while the fracture surface morphology of the samples was studied under scanning electron microscope (SEM). Mechanical testing such as tensile, impact, resilience and abrasion tests were also done in order to determine the mechanical properties of compounds.
Experimental Procedure
Materials
The investigated polypropylene homopolymer was Moplen HP500N with a melt flow index of 12 g/10 min (230°C, 2.16 kg) and a density of 0.9 g/cm3. Three types of talc were used in this study; they differ with the average diameter d50 and composition. The average particle size d50 represents the median of the Gaussian distribution form of particles (Figure 1).They were incorporated in the PP matrix with the same percentage (30%). The main characteristics of talc are shown in Table 1. The three compounds PP/talc contain carbon black with a rate of 1% in maximum.
Figure 1: Cumulative grading curve for three different talc.
Table 1 Main characteristics of the three talc used in this investigation.
| Composition (%) | d50 (μm) | ||
|---|---|---|---|
| Talc1 | Talc+Chlorite | 98 | 8 |
| Calcite+Dolomite | 2 | ||
| Talc2 | Talc+Chlorite | 80 | 6.6 |
| Calcite+Dolomite | 20 | ||
| Talc3 | Talc+Chlorite | 70 | 9.5 |
| Calcite+Dolomite | 30 | ||
Blends of PP/talc were compounded on a twin screw extruder which warranted good dispersion of the filler in the polymer matrix. No surface treatments were used on the talc. The extruded blend was injection moulded into specimens for testing.
Characterization methods
Thermal testing: Differential Scanning Calorimetry measurements were conducted on PP and PP/Talc samples in order to determine the specific enthalpy and the temperatures of melting and crystallization. Thermal experiments were performed by heating from -50 to 250°C at a heating rate of 10°C/min under dry nitrogen atmosphere. The value of specific melting enthalpy (ΔHf) was determined from the area under the melting peak of the second scan and used for the degree of crystallinity (Xc), using the following equation:
Where ΔH0f is the theoretical melting enthalpy for 100% crystalline polypropylene taken as 209 J/g [11].
Microscopic examination: Scanning electron microscope (SEM) was used to study the morphologies of the different compounds. Samples were fractured in liquid nitrogen and fracture surfaces were coated with a thin layer (12 μm) of gold before examination by SEM.
Mechanical testing: The uniaxial tensile tests were conducted using a Galbadini QUASAR10 testing machine (capacity of 10 kN) at a constant cross-head speed of 50 mm/min and at room temperature. The dimensions of tensile test samples were taken according to the NF ISO 527-2 as depicted in Figure 2a. All reported results were the averages of three measurements for each condition.
Figure 2: (a) ISO 527-2 type 1A standard sample (the unit is the mm) and (b) SENT test specimen.
The apparatus of Charpy test (capacity of 5 J) consists of a pendulum axe swinging at an unnotched sample. This test indicates how the material will respond to suddenly applied shock by measuring the amount of energy absorbed by the polymer during fracture.
The tenacity represents the material’s resistance to the propagation of a crack or a default. The studied specimens, type SENT (Single Edge Notch Tensile), presented a lateral notch as showing in Figure 2b. The specimens notched and pre-cracked were tested with a tensile test machine (displacement speed 2 mm/min at room temperature). They differ with the size ‘a’, realized with a razor blade in order to have the finest slot. Three specimens with a different size ‘a’ were prepared to unfilled PP, PP/Talc1 and PP/Talc2 (Table 2). In order to evaluate the critical energy JIc, the method of Locus was adopted.
Table 2 Notch sizes used for tenacity tests.
| Unfilled PP | PP/Talc1 | PP/Talc2 | |
|---|---|---|---|
| a1 (mm) | 1.3 | 2.8 | 1.4 |
| a2 (mm) | 2.7 | 3.6 | 3.2 |
| a3 (mm) | 4.4 | 5.6 | 5.4 |
Wear testing: In order to characterize the tribological properties of the studied material, abrasive wear test was carried out on a pin-on-disk machine. Parallelipedic samples with dimensions of 19.4 × 18 × 4 mm3 were used. They were brought into contact with an abrasive paper (P240, average particle diameter 75 μm) fixed on a rotating disc which the speed can be varied from 50 to 600 tr/min. The applied normal load was 5 N and the test duration was in the range of 30 s to 4 min. Pre-weight samples were fixed on a disk attached to an electric motor. The sliding speed of the disk was in the range of 50-100 tr/min. Tests were carried out at room temperature under a lubricated condition using tape water in order to avoid tear of abrasive paper. For each specimen a new abrasive paper was used to obtain reproducible results. The samples were thoroughly dried carefully before weighting. A Mettler microbalance with an accuracy of 0.1 mg was used to measure the weight of the samples before and after each test. Each value represents the average of three tests.
Results and Discussion
Thermal properties
All results deduced from the DSC thermograms are summarized in Table 3. The melting temperature doesn’t be modified but the crystallization one has been increased with 8°C. The increase of crystallinity and the crystallization temperature indicates that the talc is a good nucleating agent. Therefore, the presence of talc particles causes an increase of nuclei density [12]. It was also noted the presence of a small peak for pre-fusion (at 112°C) and another peak on the cooling’s curve at 100°C; it corresponds to a secondary crystallization. This result can be related to the presence of β-phase that isn’t stable in the unfilled PP (Figure 3). Indeed, PP can crystallize in 4 polymorphic components: in α, β forms and more rarely in the γ and δ forms. Fillers such as talc usually induce the α form in PP [12] and therefore, the disappearance of these two peaks has as origin the growth of α-phase induced by talc, at the expense of β-phase.
Table 3 Melting and crystallization properties of PP phase in unfilled PP and PP/talc blends.
| Tf (°C) | Tc (°C) | ΔHf (J/g) | Χc (%) | |
|---|---|---|---|---|
| Unfilled PP | 165 | 120 | 71.08 | 34.01 |
| PP/Talc1 | 164 | 128 | 57.21 | 39.1 |
| PP/Talc2 | 164 | 128 | 56.39 | 38.54 |
| PP/Talc3 | 164 | 128 | 54.79 | 37.45 |
Figure 3: DSC thermograms of (a) unfilled PP, (b) PP/talc1, (c) PP/talc2 and (d) PP/talc3.
Scanning electron microscopy analysis
Morphological observations by SEM (Figure 4) show that the three compounds don’t differ in term of dispersion; the blends were compounded on a twin screw extruder that warrants a good dispersion of talc in PP matrix. It can be seen that talc’s layers were aligned along the injection flow direction and uniformly dispersed in the matrix [13]. During injection moulding the platelets become aligned in the direction of the applied stress in the tensile specimen [14]. It was also noted the presence of some empty cavities in the interface PP/talc, it corresponds to the extraction of the carbon black’s particles (nodular cavities) and of talc (platelets). This phenomenon shows that the interfacial adhesion between talc and PP seems poor for these three compounds. However, the compound PP/talc1, whose talc's particles are the finest, presents the best adhesion (Figure 4a) compared to the others compounds (Figure 4b and 4c). The finer the charge, the higher is its specific surface area and, consequently, it offers better dispersion and adhesion with the polymeric matrix, and so a marked improvement in the properties of the compound.
Figure 4: SEM images of the morphology of compounds (a) PP/talc1, (b) PP/talc2 and (c) PP/talc3.
Influence of the addition of talc on the mechanical properties of PP compounds
Tensile behavior: The addition of 30% of talc to the PP matrix affects the mechanical properties of the compound. Indeed, the Young’s modulus of the compounds increases with the addition of the mineral filler. As shown in Figure 5a, the elastic modulus of PP/Talc3 is two times higher than the modulus of PP (2736 MPa versus 1321MPa). Therefore, this rise is the result of the reinforcement’s effect of the mineral filler. It is well documented in the literature that composite with mineral fillers has been considered as a useful way to improve the stiffness and that the popular mineral used has been talc [15]. However, the ultimate elongation decreases with the addition of talc (Figure 5b) and is accompanied with the loss of ductility. The PP being the most ductile has the highest elongation at break (63%). The addition of talc reduces the ductility and therefore the material become brittle (Figure 5c). Indeed, the talc particles act as stress concentrators, embrittling the matrix and consequently reducing the elongation at break [8].
Figure 5: Effect of the addition of 30% of talc on (a) tensile behavior (b) Young’s modulus and (c) ultimate elongation of PP and PP/talc blend.
Charpy impact strength: The addition of talc to the PP matrix has for effect a decrease on the Charpy impact strength (Figure 6). The behavior of talc is interesting, it is widely accepted that talc behaves normally, i.e. as a result of its plately nature, talc enhances stiffness even more a carbonate filler, but also degrades impact properties [16]. The unfilled PP wasn’t broken; it is ductile with resilience three times higher than the three compounds (120 kJ/m² versus 40 kJ/m²). The unfilled PP, whose fracture is ductile, needs a higher fracture’s energy than the composites PP/talc (brittle fracture). According to the thermal properties discussed previously, adding talc has for result an increase of crystallinity at the expense of amorphous part, which absorbs the impact. In addition, high stress concentrations in the vicinity of filler particles are likely to be detrimental to impact strength [16].
Figure 6: Effect of talc's addition on resilience.
Tenacity: In Figure 7, it was noted that the addition of 30% of talc to the PP matrix results in a decrease in the critical energy JIc. This result is due to the stress concentration effects of the talc. The magnitude of this stress concentration is large for high aspect ratio particles, and thus plately fillers such as talc are likely to suffer more severely from this effect [16]. As a result, the particles of talc facilitate crack’s propagation. Because of the large disparities in the elastic and plastic properties of the filler and the matrix, the fillers act as stress concentrators in the PP providing nucleation sites for crack initiation to occur [17].
Figure 7: JIc values of PP and PP/talc (30%).
Abrasive wear: The wear rate was estimated as follows:
Where m0 is the initial mass of the sample and mi is the sample’s mass after a period t(i).
The three types of talc don’t act with the same way. The extent to which any lamellar solid is abrasive depends upon its intrinsic properties, such as particle size and shape, maximum hardness, etc., and the presence of impurity is also likely to be a major factor [18]. The compound PP/talc1 has the best abrasive behavior, this result agrees well with the morphological observations; this compound has the best adhesion filler-matrix which gives it a good wear resistance (Figure 8). However, it was noted that talc 3 has a negative effect and the wear rate has been increased; this talc is the most impure and its particles are the biggest (d50=9.5 μm) that causes a bad adhesion between the filler and the matrix, and as a result a facility of particles’ extraction and its elimination with water. The compound PP/Talc2 behaves like the unfilled PP, this result is due to a combined effect of purity and the average particle size. Talc1 and talc2 improve the abrasion’s resistance of compounds thanks to their behavior as a solid lubricant; talc’s platelets facilitate the slip on the interface specimen-abrasive disc. Moreover, the increase of abrasive speed is accompanied with an increase of the wear rate of both unfilled PP and the compound (Figure 9). The wear kinetic has been increased from 8.95 to 16.36% in about 10 min for the unfilled PP. This result was due to a decrease in the abrasiveness of the paper (Figure 10) through a degradation of grain at a low speed and however, a good compensation of the intercalation of debris with lubrication at high speed.

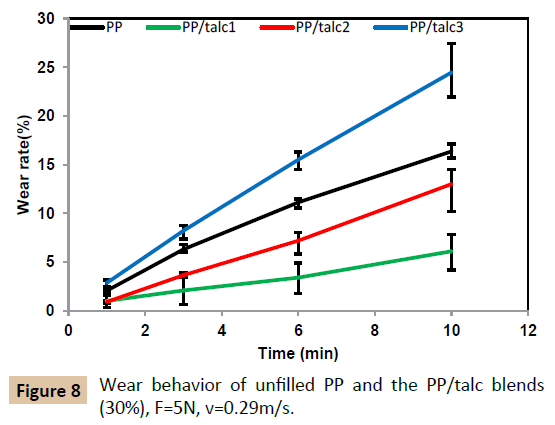

Figure 8: Wear behavior of unfilled PP and the PP/talc blends (30%), F=5N, v=0.29m/s.
Figure 9: Evolution of wear rate with variation of rotating speed (a) unfilled PP and (b) PP/talc3 (30%).
Figure 10: Abrasive paper (a) before wear experiment and (b) after 5min of wear experiment.
Conclusion
Talc has proved to be particularly efficient on thermal and mechanical properties of the resulting compounds; its use with the polypropylene is very useful especially in industrial applications. Furthermore, the following conclusions were deduced:
1. The dispersion of talc in the PP matrix is uniform and its platelets were aligned along the injection flow direction;
2. Talc addition causes a rising of the PP crystallization temperature and crystallinity. These results indicate that talc is a good nucleating agent;
3. Talc has a positive effect on the stiffness but a deleterious effect on the tensile strength and ductility;
4. Plately fillers such as talc are likely to suffer more severely from the effect of stress concentration. As results, the impact strength and the resistance of crack propagation were decreased;
5. Wear behavior depends essentially on the properties of the particles (especially size) and the purity of talc.
Acknowledgements
This work was supported by the Ministry of Higher Education and Scientific Research-Tunisia.
